| 型号 | L尺寸公差 | 材质 | 表面处理 |
| ZJATY |
0 -0.1 |
S45C | 四氧化三铁保护膜 |
| ZJATN | 无电解镀镍 | ||
| ZJAS | SUS303 | - | |
| ZJCTY |

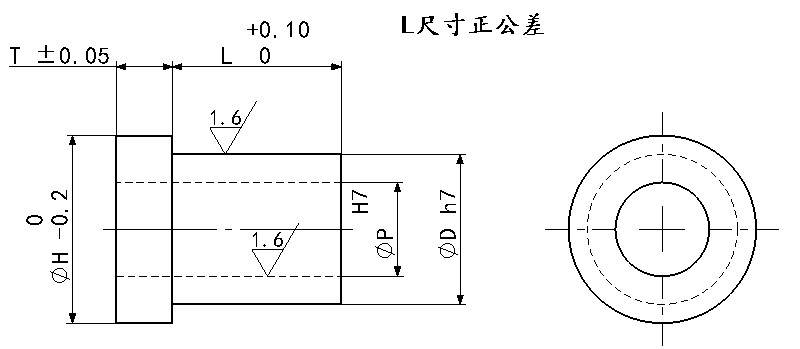

+0.1 0 |
S45C | 四氧化三铁保护膜 |
| ZJCTN | 无电解镀镍 | ||
| ZJCS | SUS303 | - |
| 型号 |
Dh7 单位0.5mm |
PH7 单位0.5mm |
H 单位0.5mm |
T 单位0.1mm |
L 单位0.1mm |
| 5.0~10.0 |
2.0~8.0 (P≤D-2) |
7.0~16.0 (D+2≤H≤D+6) |
1.0~20.0 | 1.0~5.0 | |
| 5.1~10.0 | |||||
| 10.1~25.0 | |||||
| 25.1~40.0 | |||||
| L尺寸负公差 | 40.1~50.0 | ||||
| ZJATY | 10.5~20.0 |
2.0~18.0 (P≤D-2) |
12.5~26.0 (D+2≤H≤D+6) |
1.0~5.0 | |
| ZJATN | 5.1~10.0 | ||||
| ZJAS | 10.1~25.0 | ||||
| 25.1~40.0 | |||||
| 40.1~50.0 | |||||
| 20.5~30.0 |
2.0~28.0 (P≤D-2) |
22.5~40.0 (D+2≤H≤D+10) |
1.0~20.0 | ||
| L尺寸负公差 | 20.1~30.0 | ||||
| ZJCTY | 30.1~40.0 | ||||
| ZJCTN | 40.1~50.0 | ||||
| ZJCS | 30.5~40.0 |
6.0~36.0 (P≤D-4) |
32.5~50.0 (D+2≤H≤D+10) |
1.0~20.0 | |
| 20.1~30.0 | |||||
| 30.1~40.0 | |||||
| 40.1~50.0 | |||||
| 40.5~50.0 |
10.0~44.0 (P≤D-6) |
42.5~60.0 (D+2≤H≤D+10) |
1.0~20.0 | ||
| 20.1~30.0 | |||||
| 30.1~40.0 | |||||
|
40.1~50.0 |
