型号

L尺寸公差

材质

表面处理

ZJATY

0
-0.1

S45C

四氧化三铁保护膜

ZJATN

无电解镀镍

ZJAS

SUS303

-

ZJCTY

+0.1
0

S45C

四氧化三铁保护膜

ZJCTN

无电解镀镍

ZJCS

SUS303

-

型号

Dh7
单位0.5mm

PH7
单位0.5mm

H
单位0.5mm

T
单位0.1mm

L
单位0.1mm

5.0~10.0

2.0~8.0
(P≤D-2)

7.0~16.0
(D+2≤H≤D+6)

1.0~20.0

1.0~5.0

5.1~10.0

10.1~25.0

25.1~40.0

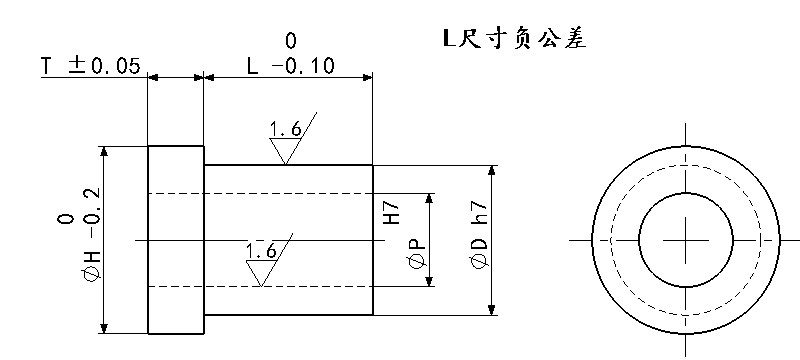

L尺寸负公差

40.1~50.0

ZJATY

10.5~20.0

2.0~18.0
(P≤D-2)

12.5~26.0
(D+2≤H≤D+6)

1.0~5.0

ZJATN

5.1~10.0

ZJAS

10.1~25.0

25.1~40.0

40.1~50.0

20.5~30.0

2.0~28.0
(P≤D-2)

22.5~40.0
(D+2≤H≤D+10)

1.0~20.0

L尺寸负公差

20.1~30.0

ZJCTY

30.1~40.0

ZJCTN

40.1~50.0

ZJCS

30.5~40.0

6.0~36.0
(P≤D-4)

32.5~50.0
(D+2≤H≤D+10)

1.0~20.0

20.1~30.0

30.1~40.0

40.1~50.0

40.5~50.0

10.0~44.0
(P≤D-6)

42.5~60.0
(D+2≤H≤D+10)

1.0~20.0

20.1~30.0

30.1~40.0

40.1~50.0
