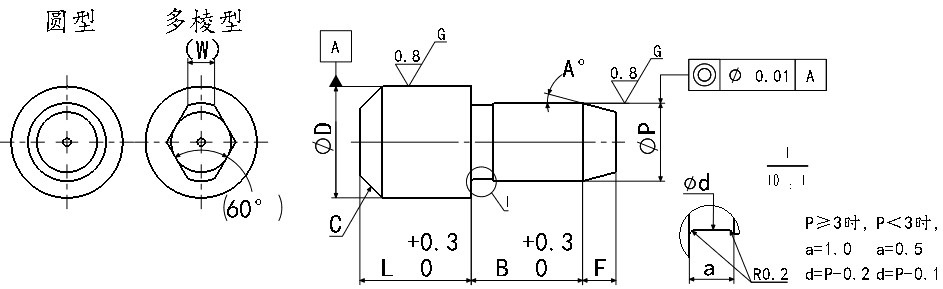

| Type | 相当材质 | 表面处理 | 硬度 | |
| 圆型 | 多棱型（适用于D≥4） | |||
| JBUKR | JBVKR | SKS3 | / | 58~61HRC |
| JBUKRG | JBVKRG | SKS3 | 镀硬铬 | 58~61HRC/镀层硬度750HV |
| JBUCR | JBVCR | SUS440C | / | 53HRC |
| JBUS | JBVS | SUS303 | / | / |
| Type | D公差选择 | P公差选择 | D |
P 指定单位0.01mm |
L 指定单位0.01mm |
B 指定单位0.01mm |
F 指定单位0.01mm |
A 选择 |
c | （W） | |
| 圆型 | 多棱型 | ||||||||||
|
JBUKR JBUKGR JBUCR JBUS |
JBVKR JBVKGR JBVCR JBVS （使用于D≥4） |
M P G H |
M P G H S |
2 | 1.50~2.00 | 2~4 | 2.0~10.0 | 0.5~10.0 |
15 30 45 60 |
0.3 | / |
| 3 | 1.50~3.00 | 3~6 | 0.5 | 1 | |||||||
| 4 | 2.00~4.00 | 4~8 | 1 | 1 | |||||||
| 5 | 2.00~5.00 | 5~10 | 1 | 1.2 | |||||||
| 6 | 2.00~6.00 | 6~12 | 2.0~12.0 | 1 | 1.5 | ||||||
| 8 | 3.00~8.00 | 8~16 | 3.0~15.0 | 1.5 | 1.8 | ||||||
| 10 | 3.00~10.00 | 10~20 | 3.0~20.0 | 2 | 2.2 | ||||||
| 12 | 5.00~12.00 | 12~24 | 2 | 2.5 | |||||||
| 13 | 6.00~13.00 | 13~26 | 5.0~20.0 | 2 | 3 | ||||||
| 16 | 10.00~16.00 | 16~32 | 3 | 4 | |||||||
| 20 | 13.00~20.00 | 20~40 | 3 | 5 | |||||||
| D或P | D、P公差选择 | ||||
| M | P | G | H | S | |
| m6 | p6 | g6 | h7 | / | |
| 1.5.00-3.00 |
+0.008 +0.002 |
+0.012 +0.006 |
-0.002 -0.008 |
0 -0.010 |
0 -0.01 |
| 3.01-6.00 |
+0.012 +0.004 |
+0.02 +0.012 |
-0.004 -0.012 |
0 -0.012 |
|
| 6.01-10.00 |
+0.015 +0.006 |
+0.024 +0.015 |
-0.005 -0.014 |
0 -0.015 |
|
| 10.01-18.00 | +0.018 | +0.029 | -0.006 | 0 | |
| 18.01-20.00 | +0.021 | +0.035 | -0.007 |
0 |
|
